Class structure is shown in the following UML diagrams.

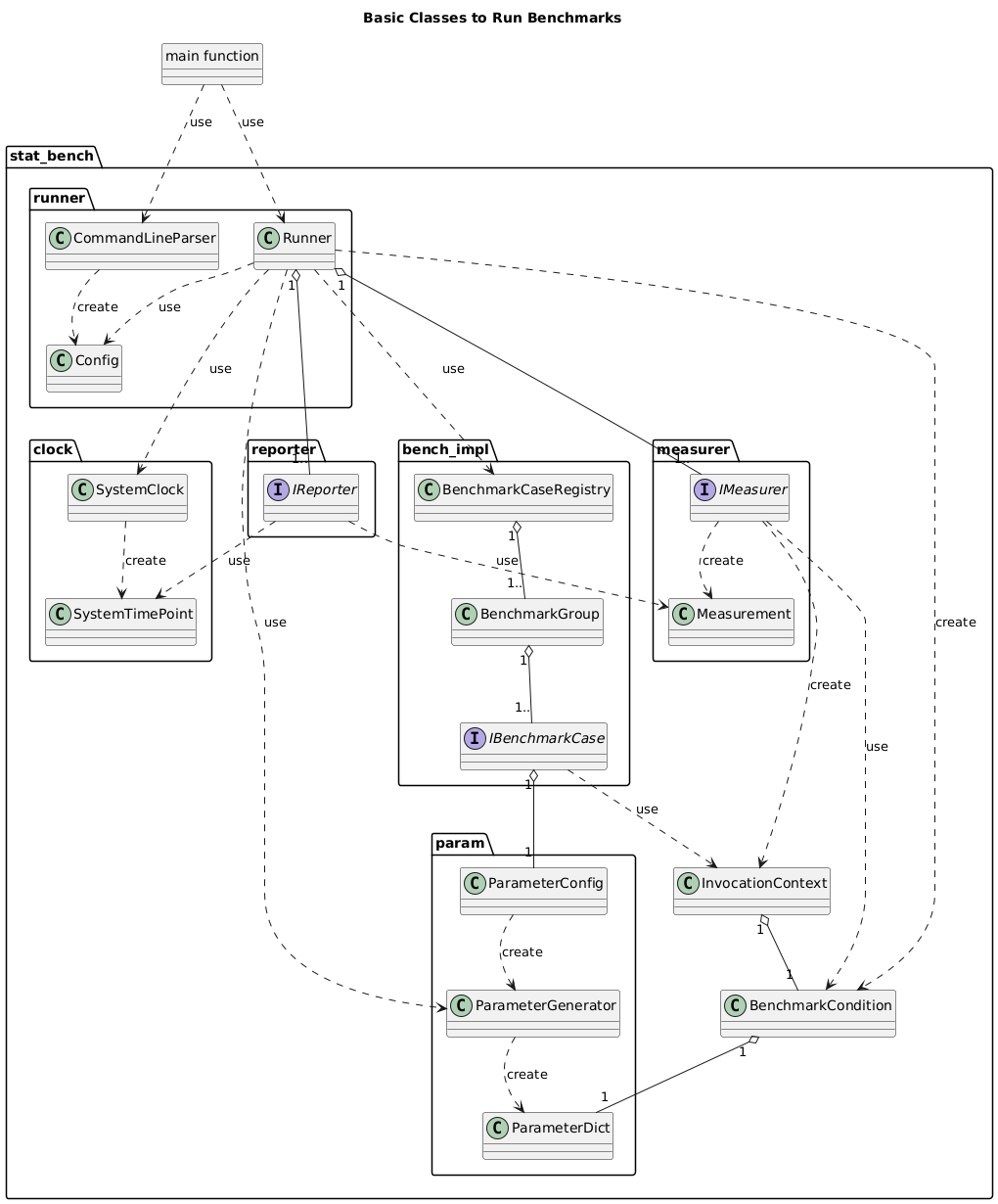

Classes to Run Benchmarks#

@startuml classes_run_bench title Basic Classes to Run Benchmarks class "main function" as main hide main circle package stat_bench { package runner { class CommandLineParser main ..> CommandLineParser : use class Runner main ..> Runner : use class Config CommandLineParser ..> Config : create Runner ..> Config : use } package clock { class SystemClock Runner ...> SystemClock : use class SystemTimePoint SystemClock ..> SystemTimePoint : create } package bench_impl { class BenchmarkCaseRegistry Runner ...> BenchmarkCaseRegistry : use class BenchmarkGroup BenchmarkCaseRegistry "1" o-- "1.." BenchmarkGroup interface IBenchmarkCase BenchmarkGroup "1" o-- "1.." IBenchmarkCase } package measurer { interface IMeasurer Runner "1" o--- "1.." IMeasurer class Measurement IMeasurer ..> Measurement : create } package reporter { interface IReporter Runner "1" o--- "1.." IReporter IReporter ..> Measurement : use IReporter ..> SystemTimePoint : use } package param { class ParameterConfig IBenchmarkCase "1" o-- "1" ParameterConfig ParameterConfig ..> ParameterGenerator : create class ParameterGenerator Runner ..> ParameterGenerator : use class ParameterDict ParameterGenerator ..> ParameterDict : create } class BenchmarkCondition Runner ..> BenchmarkCondition : create IMeasurer ..> BenchmarkCondition : use BenchmarkCondition "1" o-- "1" ParameterDict class InvocationContext InvocationContext "1" o-- "1" BenchmarkCondition IMeasurer ..> InvocationContext : create IBenchmarkCase ..> InvocationContext : use } @enduml

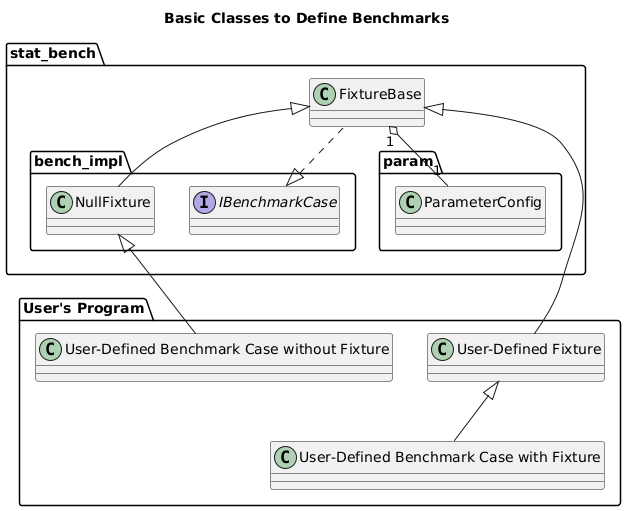

Classes to Define Benchmarks#

@startuml classes_define_bench title Basic Classes to Define Benchmarks package stat_bench { package bench_impl { interface IBenchmarkCase } class FixtureBase IBenchmarkCase <|.. FixtureBase package bench_impl { class NullFixture FixtureBase <|-- NullFixture } package param { class ParameterConfig FixtureBase "1" o-- "1" ParameterConfig } } package "User's Program" { class "User-Defined Fixture" as UserFixture FixtureBase <|-- UserFixture class "User-Defined Benchmark Case with Fixture" as FixtureBenchmarkCase UserFixture <|-- FixtureBenchmarkCase class "User-Defined Benchmark Case without Fixture" as NoFixtureBenchmarkCase NullFixture <|-- NoFixtureBenchmarkCase } @enduml

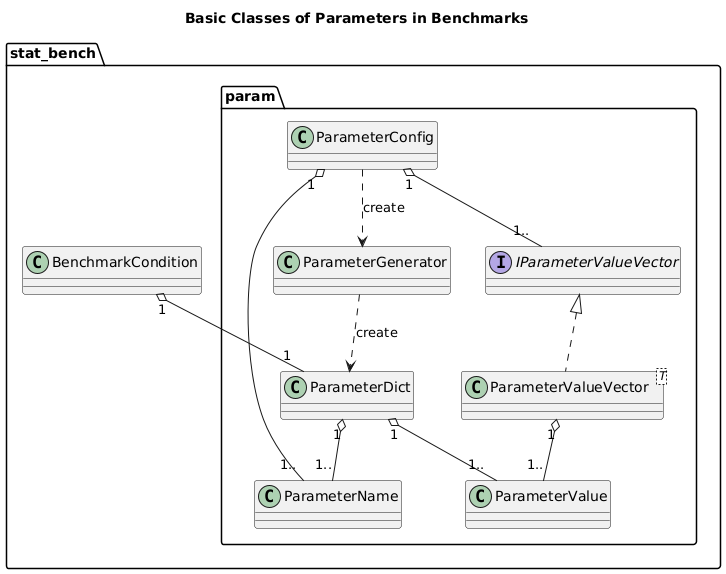

Classes of Parameters in Benchmarks#

@startuml classes_param title Basic Classes of Parameters in Benchmarks package stat_bench { class BenchmarkCondition package param { class ParameterConfig class ParameterGenerator ParameterConfig ..> ParameterGenerator : create class ParameterName ParameterConfig "1" o-- "1.." ParameterName interface IParameterValueVector ParameterConfig "1" o-- "1.." IParameterValueVector class ParameterValueVector<T> IParameterValueVector <|.. ParameterValueVector class ParameterValue ParameterValueVector "1" o-- "1.." ParameterValue class ParameterDict ParameterGenerator ..> ParameterDict : create ParameterDict "1" o-- "1.." ParameterName ParameterDict "1" o-- "1.." ParameterValue BenchmarkCondition "1" o-- "1" ParameterDict } } @enduml

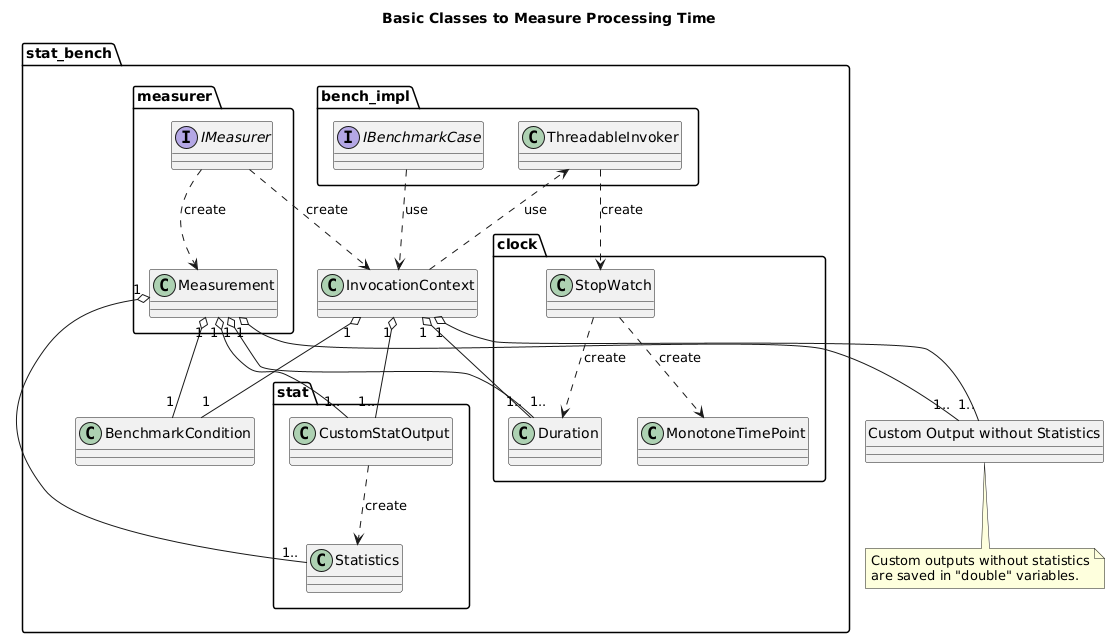

Classes to Measure Processing Time#

@startuml classes_measure title Basic Classes to Measure Processing Time class "Custom Output without Statistics" as NoStatisticsCustomOutput note bottom Custom outputs without statistics are saved in "double" variables. end note hide NoStatisticsCustomOutput circle package stat_bench { package bench_impl { interface IBenchmarkCase class ThreadableInvoker } class BenchmarkCondition package clock { class StopWatch ThreadableInvoker ..> StopWatch : create class MonotoneTimePoint StopWatch ..> MonotoneTimePoint : create class Duration StopWatch ..> Duration : create } package stat { class CustomStatOutput class Statistics CustomStatOutput ..> Statistics : create } package measurer { interface IMeasurer class Measurement IMeasurer ..> Measurement : create Measurement "1" o-- "1" BenchmarkCondition Measurement "1" o-- "1.." Duration Measurement "1" o-- "1.." CustomStatOutput Measurement "1" o-- "1.." Statistics Measurement "1" o-- "1.." NoStatisticsCustomOutput } class InvocationContext InvocationContext "1" o-- "1" BenchmarkCondition InvocationContext "1" o-- "1.." Duration InvocationContext "1" o-- "1.." CustomStatOutput InvocationContext "1" o-- "1.." NoStatisticsCustomOutput IMeasurer ..> InvocationContext : create IBenchmarkCase ..> InvocationContext : use InvocationContext ..> ThreadableInvoker : use } @enduml

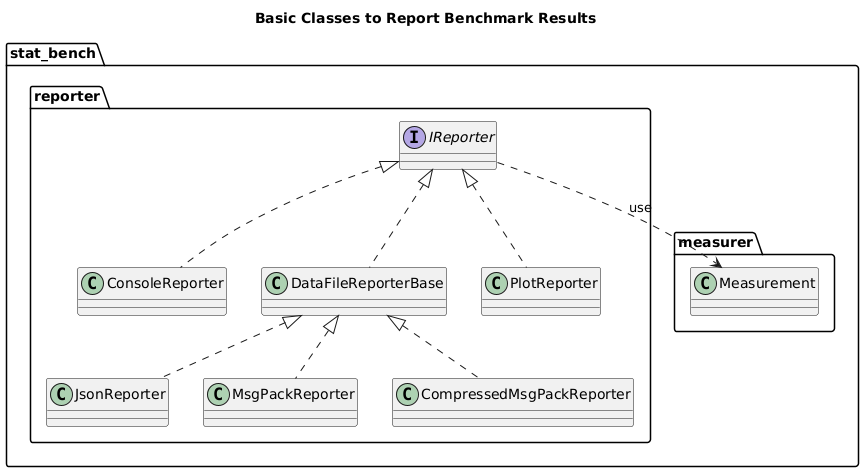

Classes to Report Benchmark Results#

@startuml classes_reporter title Basic Classes to Report Benchmark Results package stat_bench { package measurer { class Measurement } package reporter { interface IReporter IReporter ..> Measurement : use class ConsoleReporter IReporter <|.. ConsoleReporter class DataFileReporterBase IReporter <|.. DataFileReporterBase class JsonReporter DataFileReporterBase <|.. JsonReporter class MsgPackReporter DataFileReporterBase <|.. MsgPackReporter class CompressedMsgPackReporter DataFileReporterBase <|.. CompressedMsgPackReporter class PlotReporter IReporter <|.. PlotReporter } } @enduml

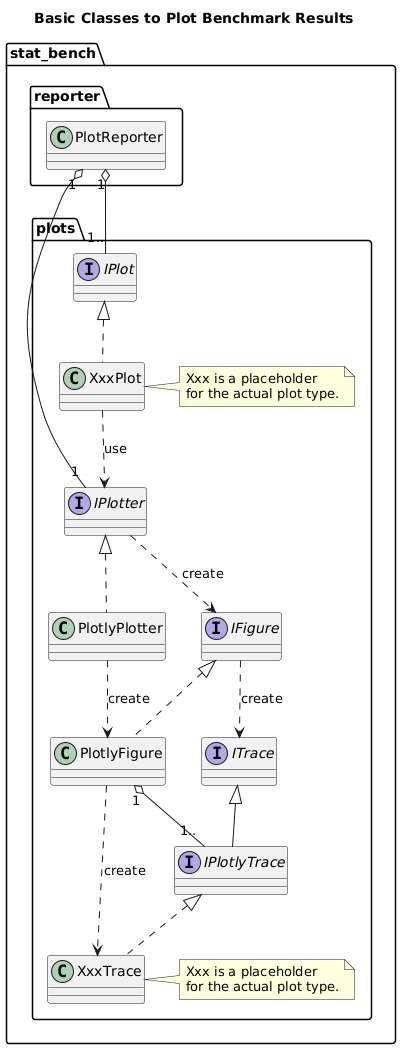

Classes to Plot Benchmark Results#

@startuml classes_plot title Basic Classes to Plot Benchmark Results package stat_bench { package reporter { class PlotReporter } package plots { interface IPlotter PlotReporter "1" o-- "1" IPlotter class PlotlyPlotter IPlotter <|.. PlotlyPlotter interface IFigure IPlotter ..> IFigure : create class PlotlyFigure IFigure <|.. PlotlyFigure PlotlyPlotter ..> PlotlyFigure : create interface ITrace IFigure ..> ITrace : create interface IPlotlyTrace ITrace <|-- IPlotlyTrace PlotlyFigure "1" o-- "1.." IPlotlyTrace class XxxTrace note right Xxx is a placeholder for the actual plot type. end note IPlotlyTrace <|.. XxxTrace PlotlyFigure ..> XxxTrace : create interface IPlot PlotReporter "1" o-- "1.." IPlot class XxxPlot note right Xxx is a placeholder for the actual plot type. end note IPlot <|.. XxxPlot XxxPlot ..> IPlotter : use } } @enduml
